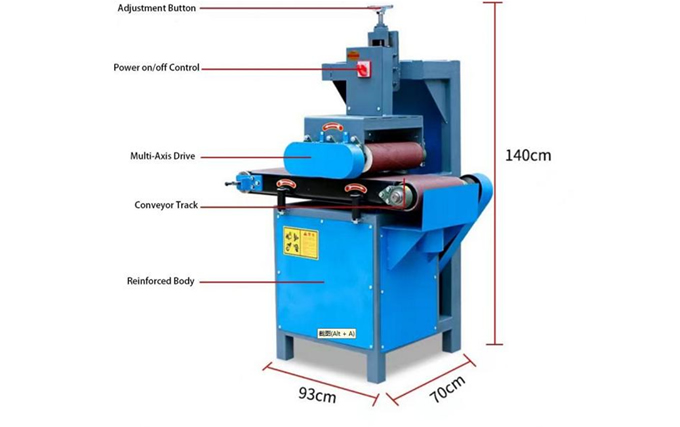

KLTB-400S Sanding Machine

ProductModel 40CM ProductDimensions 9380140cm Motor Power 4kW MachineWeight 150kg Rated Voltage 380V RatedFrequency 50Hz

KLTB-400 Cutting-off Saw

ItemSpecificationsDimensions440017001400 mmTotal Power9.5 kWCutting Motor7.5 kW (GB standard copper core)Feed Motor1 kW 2 servo motors (Tonghang brand)Control SystemXINJE PLC Processing DimensionsLength: 70-3000 mmWidth: 150-400 mmHeight: 20-100 mmSaw

KLTB-350 Swallow-tail Spacer Machine

Dimensions4100mm (L) 800mm (W) 1400mm (H)Min. Processing Width25mmMax. Processing Width70mmMin. ProcessingThickness1mmMax. ProcessingThickness3mmProcessing Length10-300mmFeed Speed0-20m/minOperation ModeManual/AutomaticPunching Speed60 strokes/min

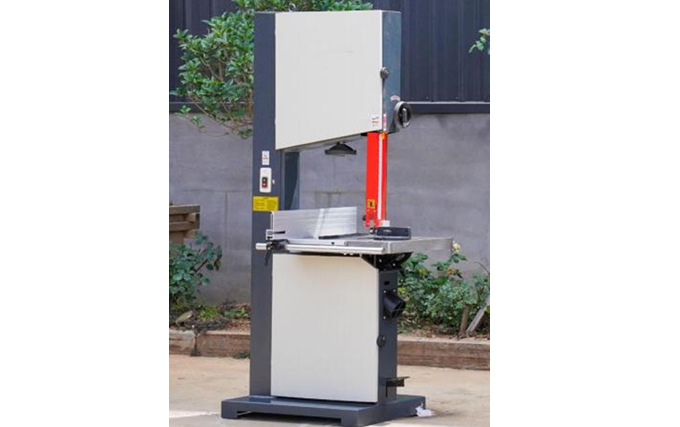

KLTB-345 Band Saw

ParameterSpecificationMaximum Cutting Height370 mmMaximum Throat Depth480 mmBlade Speed25 m/sSaw Wheel Speed1000 rpmParameterSpecificationMaximum Cutting Height370 mmMaximum Throat Depth480 mmSaw Wheel Dimensions50035 mmBlade Dimensions402016 mmWorktable

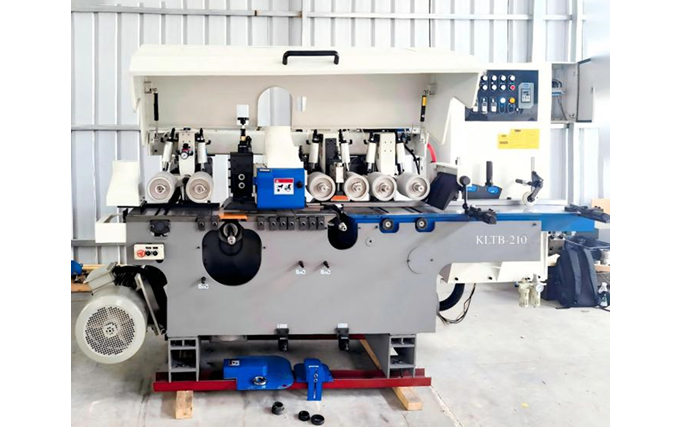

KLTB-210 Multi-brace Chamfer Machine

Maximum machining width mm210Maximum machining thicknessmm75Feeding speedm/min7-26Minimum sawing length during intermittent feedingmm400Minimum sawing length during continuous feedingmm250Diameter of upper and lower horizontal shaftsmm40Horizontal movemen

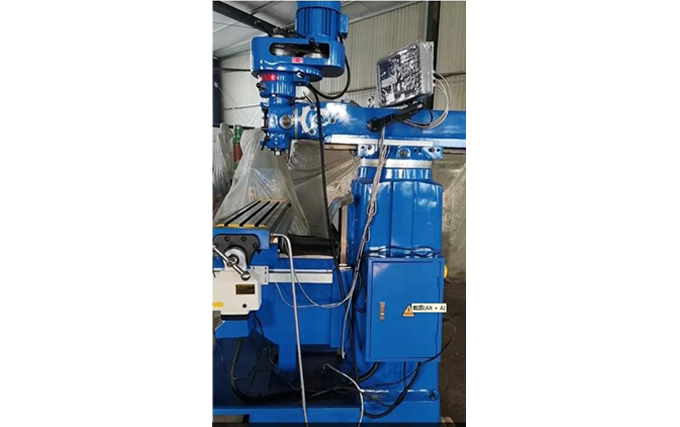

KLTB-40 Drilling and Milling Machine

Max. Vertical MillingDiameter20 mmMax. Boring Diameter120 mmMax. Tapping DiameterM16Max. Surface Grinding Wheel Diameter150 mmSpindle End to TableDistance120-550 mmSpindle Speed Range168-3160 rpmSpindle Travel120 mmTable Size800240 mmTable Travel400250 mm

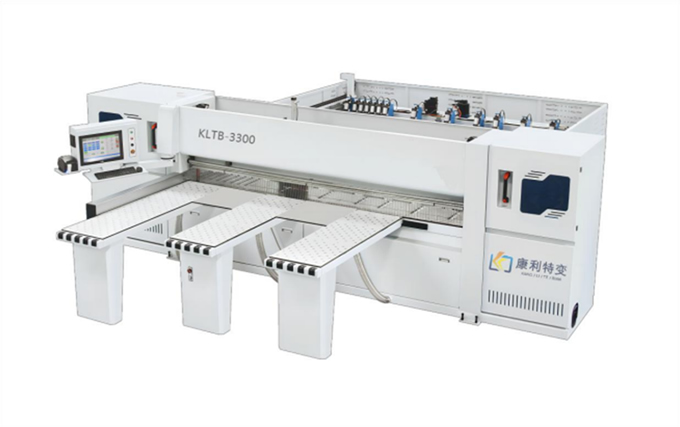

KLTB-3300 Electronic Saw

ModelKLTB-3300Industrial Control ComputerIncludedSaw Cutting Length3250 mmSaw Cutting Thickness100 mmMain Saw Blade DiameterΦ400 mmMain Saw Spindle DiameterΦ80 mmMain Saw Spindle Speed4800 rpmScoring Saw Blade DiameterΦ180 mmScoring Saw Spindle Diameter…

Oil Duct Bonding Machine

This is an intelligent machine that automatically arranges, glues and presses struts. And the machine is controlled by computer program with high precision.

Clackband Bonding Machine

This equipment is used for the production of longitudinal oil duct in the transformer, and the small particles are pasted on the insulating paper tape according to the set spacing, with high efficiency and good precision.

Swallow-Tailed Spacers Automatic Feeding and Punching Machine

This equipment is mainly used for Swallow-Tailed Spacers punching, with a high degree of automation, It can be stacked at one time to realize automatic feeding and punching, and the process can be completed without the participation of personnel. Thus hel

CNC electronic panel saw

This equipment is a special processing equipment designed for high speed sawing and cutting of insulating presspaper board and electrical laminated wood board.

Amorphous shearing machine for cutting 5 meters

This equipment can be rolled and cut to a length of 5 meters. It has been upgraded on the traditional model, with higher efficiency and stronger automation.
