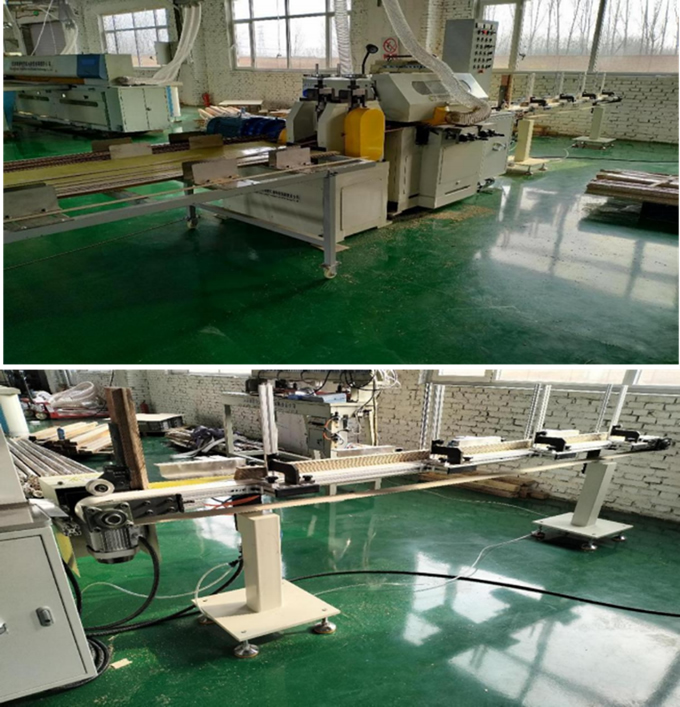

Support Strip Machine (Batten Machine)

Feeding cardboard width:

15–40mm (usually >15mm)

Feeding cardboard thickness:

3–15mm (usually >3mm)

Chamfering Machine

Feeding cardboard width:

25–60mm

Feeding cardboard thickness:

1.5–3mm

Feeding Specifications

Feeding speed:

0–21 m/min (variable frequency speed

control)

Feeding motor:

0.75 kW

Chamfering Function:

Processable strip material range:

Thickness:

1.0–20mm

Width:

5–200mm

Length:

>500mm

Tool spindle speed:

6000 rpm

Feeding speed:

0–21 m/min (variable frequency speed

control)

Vertical cutter movement range:

8–60mm

Milling cutter motor:

1.5 kW × 2
